Steel PowerLok® lid (AS 3996 Class B)

  • AS/NZS 4586 Slip Resistance Rating R10
  • IP2XD (AS 60529) protection against ingress of foreign objects when hatch is closed.
  • Lids fit into rebate at top of pit, whilst access covers must be installed in a cast in situ concrete collar.

Steel Lid (AS 3996 Class B)

  • AS/NZS 4586 Slip Resistance Rating R10
  • IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.
  • Lids fit into rebate at top of pit, whilst access covers must be installed in a cast in situ concrete collar.

  • AS/NZS 4586 Slip Resistance Rating R10.
  • IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.
  • Lids fit into rebate at top of pit, whilst access covers must be installed in a cast in situ concrete collar.

  • Increase pit depth, riser rebate is identical to pit rebate and with lid, offers the same IP protection.
  • Can be cut to required height. Each riser adds 300mm depth.
  • ACO recommends no more than 2 risers.
  • Excellent strength to weight ratio and electrical resistivity
  • Low Porosity
  • High resistance to chemicals, weathering and biological attack
  • Holes can be cut anywhere on side walls.
  • Maximum number of holes recommended per pit is limited by conduit quantity and size.
  • Contact ACO for guidance.

All access covers have IP4X (AZ 60529) protection against ingress of foreign objects. Rhinocast® access covers offer water and gas tightness to AS 3996.

  1. Steel Urbanfil® recessed cover (AS 3996 Class B)
  2. Steel Pavermate® recessed cover (AS 3996 Class B)
  3. Steel frame - external dimensions 580 x 580 x 70mm
  4. Cast-in-situ concrete collar

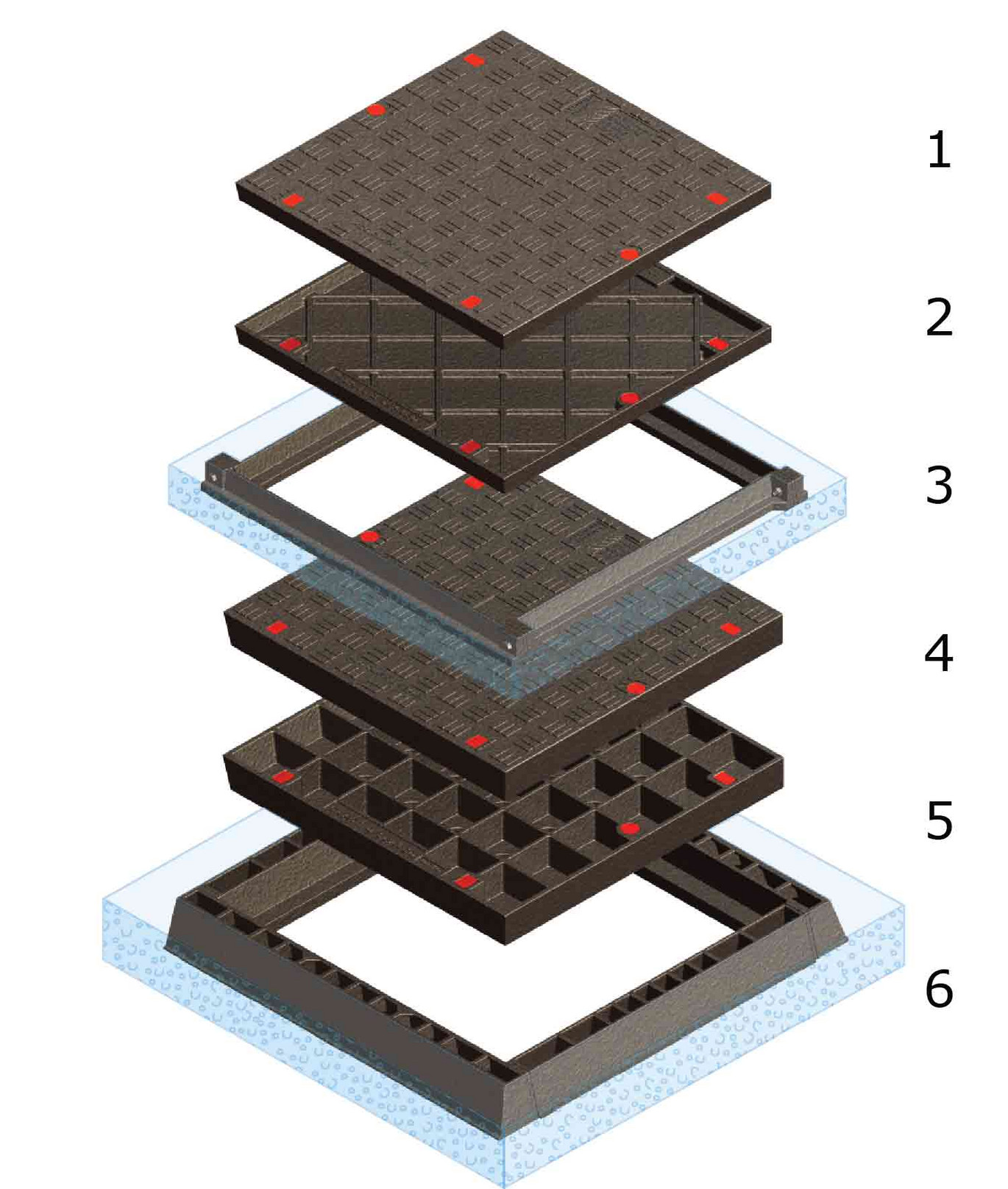

  1. Ductile iron Rhinocast® solid top cover (AS/NZ 3996 Class B) AS/NZS 4586 Slip Resistance Rating R10
  2. Ductile iron Rhinocast® recessed cover (AS/NZ 3996 Class B)
  3. Iron frame - external dimensions 600 x 560 x 55mm. Cast-in-situ concrete collar
  4. Ductile iron Rhinocast® solid top cover (AS/NZ 3996 Class D) AS/NZS 4586 Slip Resistance Rating R10
  5. Ductile iron Rhinocast® recessed cover (AS/NZ 3996 Class D or G)
  6. Iron frame - external dimensions Class D - 600 x 560 x 55mm or Class G - 685 x 685 x 125mm. Cast-in-situ concrete collar
DescriptionPart No.Weight (kg)
Type 66H Polymer Concrete Pit (915mm deep)75226116
Type 66 Polymer Concrete Riser (adds 300mm to pit depth)7512637

Lids & CoversPart No.Cover Wt (kg)¹Total Wt (kg)
Polymer Concrete Lid (AS 3996 Class A) - Blank751492424
Polymer Concrete Lid (AS 3996 Class A) - Communications751542424
Polymer Concrete Lid (AS 3996 Class A) - Electricity751602424
Steel Lid (AS 3996 Class B)766201717
Steel PowerLok® lid (AS 3996 Class B)²766302222
Steel Urbanfil® recessed cover (AS 3996 Class B)³815651522
Steel Pavermate® recessed cover (AS 3996 Class B)³819481824
Ductile Iron Rhinocast® recessed cover (AS 3996 Class B)*850453660
Ductile Iron Rhinocast® solid top cover (AS 3996 Class B)*852223563
Ductile Iron Rhinocast® recessed cover (AS 3996 Class D)*8904162116
Ductile Iron Rhinocast® solid top cover (AS 3996 Class D)*8923565125
Ductile Iron Rhinocast® recessed cover (AS 3996 Class G)*87044135200

Notes:

  1. Lid and access cover weights are provided as lifting weight (individual cover parts) and total weight. Recessed cover weights do not included pavement infill; for approx. lifting weight - Urbanfil®/Pavermate® covers - multiply weight by 7; Rhinocast® covers multiply weight by 1.5.
  2. All lids are supplied with brackets and support bars where applicable. PowerLok® lids supplies with locking bolt (padlock not supplied).
  3. Optional brass edging (Specify 'BE' after part number).
  4. Optional locking, brass or stainless steel edging in 12mm or 40mm heights (Specify 'BE' or 'SS' and height after part number).

Internal Working Area66H (mm)
A486
B486
X571
Y571
Z850
Overall Dimensions 66H (mm)
L663
W663
D918

Notes:

  1. Using risers will increase pit depth (Z & D) by depth of riser.
  2. Access covers will increase depth of pit by height of concrete collar - allowance should be made for concrete collar during pit installation.
