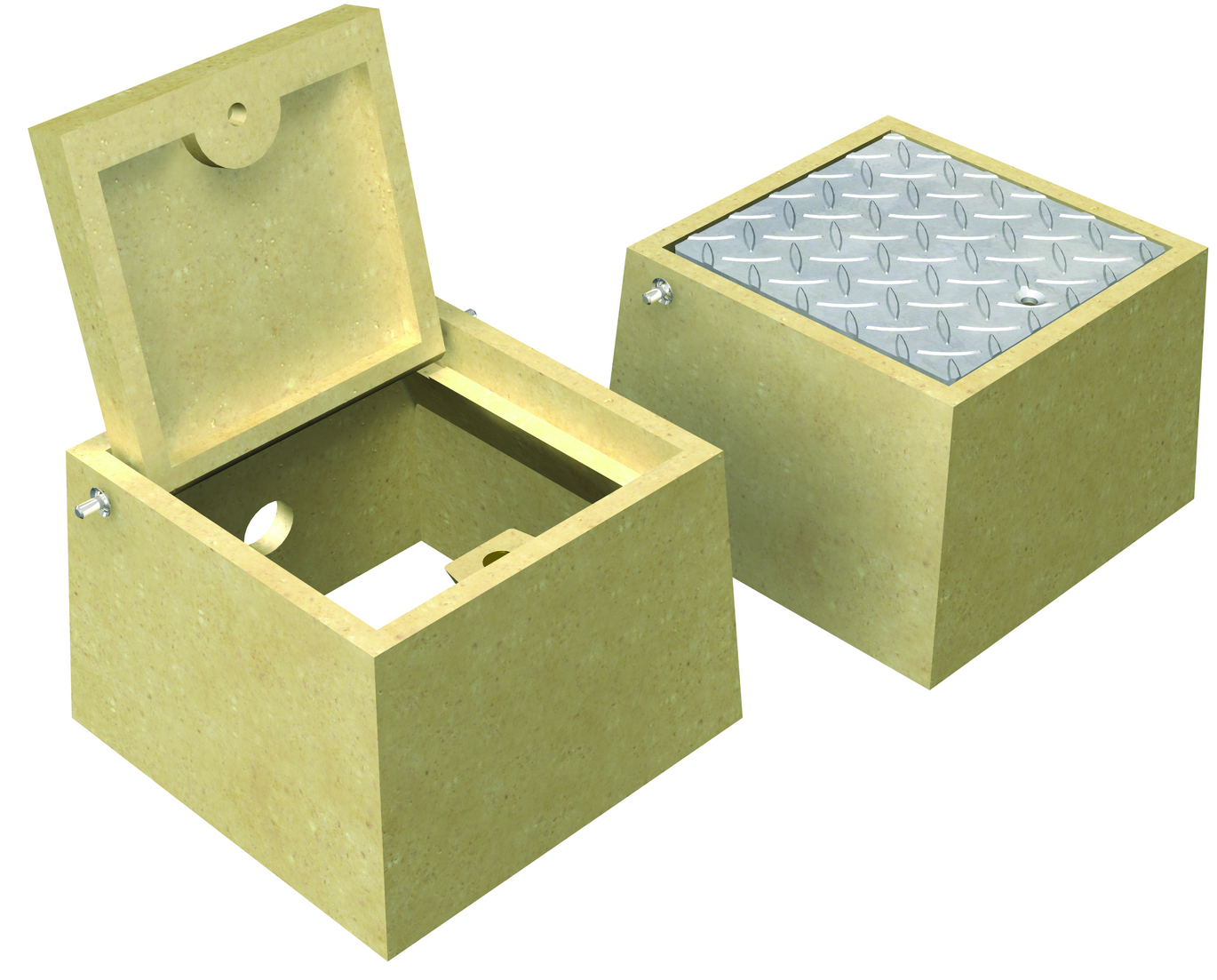

  1. Hinged polymer concrete or aluminium lid
  2. Steel hinge
  3. 40mm diameter cable entry at back of body
  4. Locking bolt
  5. Polymer concrete pit construction offers excellent strength to weight ratio, excellent electrical resistivity, low porosity, and high resistance to chemicals, weathering, biological attack.
Description Part No.Weight (kg)
PEP22 Earth Rod Pit with aluminium lid 757804
PEP22 Earth Rod Pit with polymer concrete lid 757675

Internal Working Area(mm)
A195
B195
X150
Y110
Z120
Overall Dimensions (mm)
L220
W220
D150

Documents

Download here
