Steel PowerLok® Lid (AS 3996 Class B)

  • AS/NZS 4586 Slip Resistance Rating R10
  • IP2XD (AS 60529) protection against ingress of foreign objects when hatch is closed.

Steel Lid (AS 3996 Class B)

  • AS/NZS 4586 Slip Resistance Rating R10
  • IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.

Cement Concrete 2-part Lid (AS 3996 Class A)

  • AS/NZS 4586 Slip Resistance Rating R9.
  • IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.

  • Increase pit depth, riser rebate is identical to pit rebate and with lid, offers the same IP protection.
  • To produce riser, cut base off another pit to appropriate length. Each riser adds 400mm depth.
  • ACO recommends no more than 1 riser.
  • Continuous ribbed wall design for maximum wall strength.
  • Use holesaw to cut conduit hole anywhere on side wall. Maximum number of holes recommended per pit is limited by conduit quantity and size. Contact ACO for guidance.
  • Pit can be cut at specific points to create a shallower pit.
  • Plastic pit construction offers an economic pit solution for light duty applications. Plastic also offers excellent electrical resistivity.

All access covers have IP4X (AZ 60529) protection against ingress of foreign objects. Rhinocast® access covers offer water and gas tightness to AS 3996.

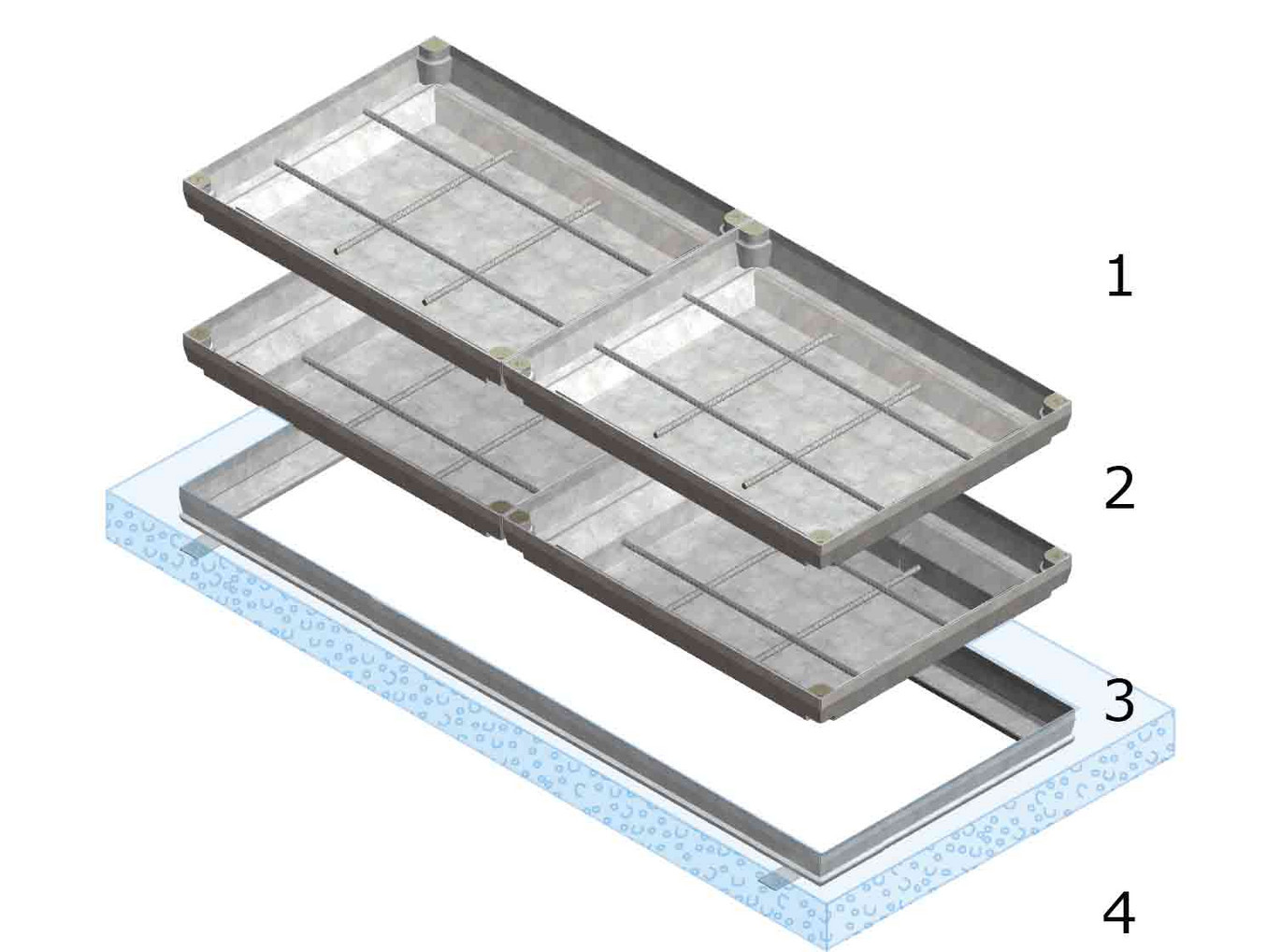

  1. Steel Urbanfil® recessed 2-part cover (AS 3996 Class B)
  2. Steel Pavermate® recessed 2-part cover (AS 3996 Class B)
  3. Steel frame - external dim. 1450 x 580 x 70mm
  4. Cast-in-situ concrete collar

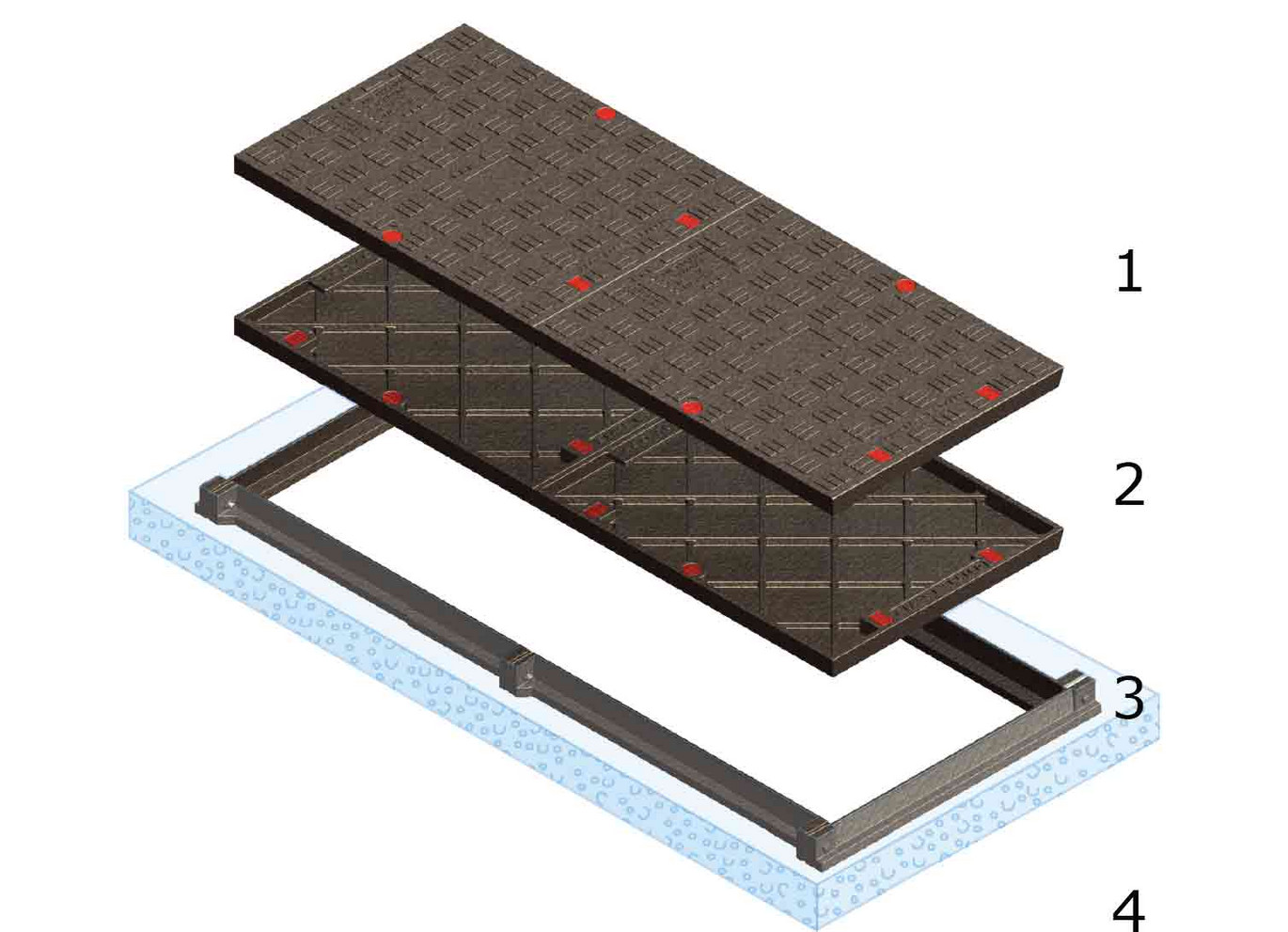

  1. Ductile iron Rhinocast® solid top 2-part cover (AS 3996 Class B) AS/NZS 4586 Slip Resistance Rating R10
  2. Ductile iron Rhinocast® recessed 2-part cover (AS 3996 Class B)
  3. Iron frame - external dim. 1355 x 600 x 55mm
  4. Cast-in-situ concrete collar
DescriptionPart No.Weight (kg)
Type 8 Plastic Pit 7501942

Lids & CoversPart No.Cover Wt (kg)¹Total Wt (kg)
Cement Concrete 2-Part Lid (AS 3996 Class A) - Blank750103369
Cement Concrete 2-Part Lid (AS 3996 Class A) - Communications750113369
Cement Concrete 2-Part Lid (AS 3996 Class A) - Electricity750123369
Steel 2-Part Lid (AS 3996 Class B)768201531
Steel PowerLok® 2-Part Lid (AS 3996 Class B)768302039
Steel Urbanfil® recessed 2-Part cover (AS 3996 Class B)²825671339
Steel Pavermate® recessed 2-Part cover (AS 3996 Class B)²823731541
Ductile Iron Rhinocast® recessed 2-Part cover (AS 3996 Class B)³854333091
Ductile Iron Rhinocast® solid top 2-Part cover (AS 3996 Class B)³868532889

Notes:

  1. Lid & access cover weights are provided as lifting weight (individual cover parts) and total weight. Recessed cover weights do not included pavement infill; for approx. lifting weight - Urbanfil®/Pavermate® covers - multiply weight by 7; Rhinocast® covers multiply weight by 1.5.
  2. Optional brass edging (Specify 'BE' after part number).
  3. Optional locking, brass or stainless steel edging in 12mm or 40mm heights (Specify 'BE' or 'SS' and height after part number).
Internal Working Area(mm)
A1226
B413
C418
X1248
Y455
Z836
Overall Dimensions (mm)
L1378
W565
D890

Notes:

  1. Using risers will increase pit depth (Z & D) by depth of riser.
  2. Access covers will increase depth of pit by height of concrete collar - allowance should be made for concrete collar during pit installation.
