Steel PowerLok® Lid (AS 3996 Class B)

  • AS/NZS 4586 Slip Resistance Rating R10
  • IP2XD (AS 60529) protection against ingress of foreign objects when hatch is closed.
  • Lids fit into rebate at top of pit, whilst access covers must be installed in a cast in situ concrete collar.

Steel Lid (AS 3996 Class B)

  • AS/NZS 4586 Slip Resistance Rating R10
  • IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.
  • Lids fit into rebate at top of pit, whilst access covers must be installed in a cast in situ concrete collar.

  • AS/NZS 4586 Slip Resistance Rating R9.
  • IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.
  • Lids fit into rebate at top of pit, whilst access covers must be installed in a cast in situ concrete collar.

  • Increase pit depth, riser rebate is identical to pit rebate and with lid, offers the same IP protection.
  • To produce riser,cut base off another pit to appropriate length. Each riser adds 300mm depth.
  • ACO recommends no more than 1 riser.
  • Continuous ribbed wall design for maximum wall strength.
  • Use holesaw to cut conduit hole anywhere on side wall. Maximum number of holes recommended per pit is limited by conduit quantity and size. Contact ACO for guidance.
  • Pit can be cut at specific points to create a shallower pit.
  • Plastic pit construction offers an economic pit solution for light duty applications. Plastic also offers excellent electrical resistivity.

All access covers have IP4X (AZ 60529) protection against ingress of foreign objects. Rhinocast® access covers offer water and gas tightness to AS 3996.





  1. Steel Urbanfil® recessed cover (AS/NZ 3996 Class B)
  2. Steel Pavermate® recessed cover (AS/NZ 3996 Class B)
  3. Steel frame - external dim. 780 x 480 x 70mm
  4. Cast-in-situ concrete collar

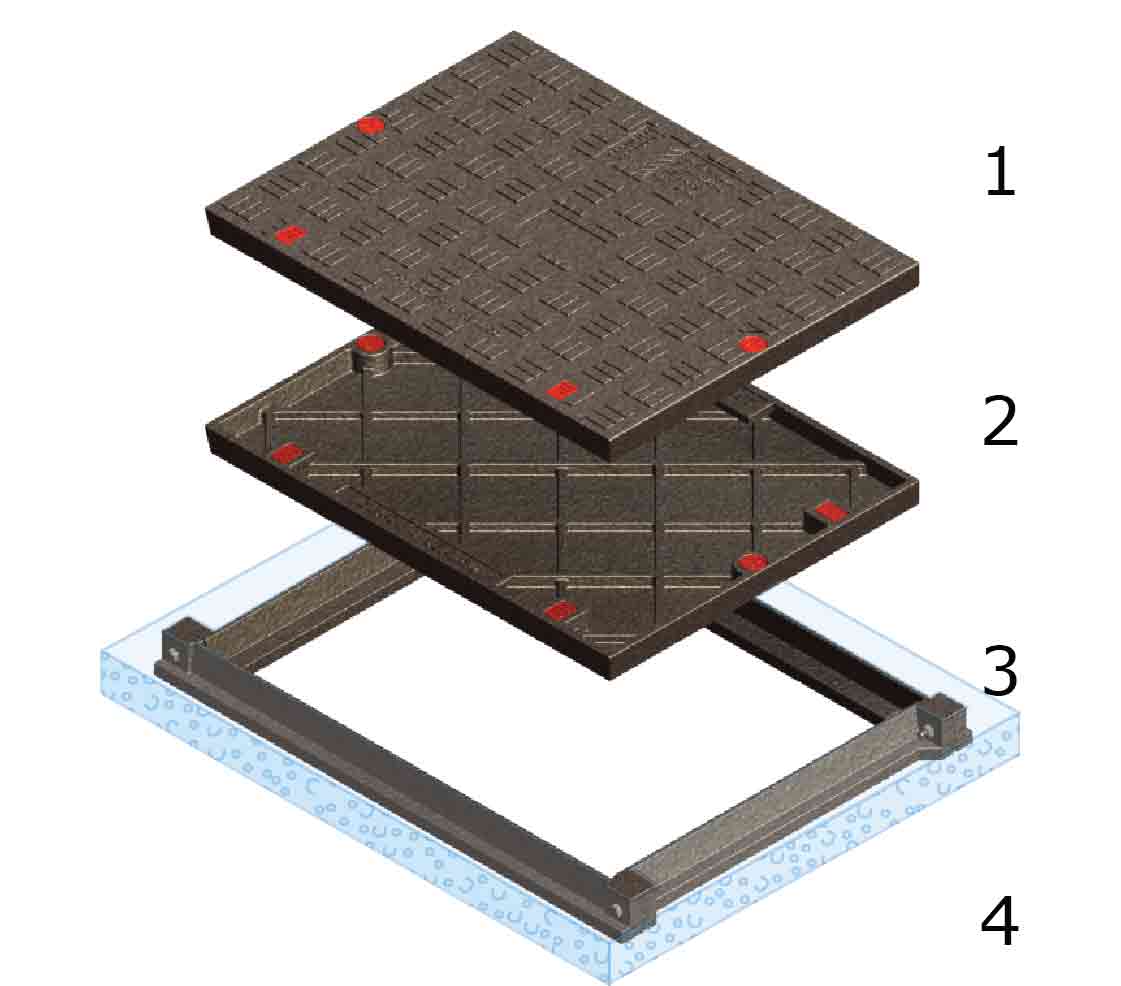

  1. Ductile iron Rhinocast® solid top cover (AS/NZS 3996 Class B) AS/NZS 4586 Slip Resistance Rating R10
  2. Ductile iron Rhinocast® recessed cover (AS/NZS 3996 Class B)
  3. Iron frame - external dim. 750 x 560 x 55mm
  4. Cast-in-situ concrete collar
DescriptionPart No.Weight (kg)
Type 4 Plastic Pit 7595712
Lids & CoversPart No.Cover Wt (kg)Total Wt (kg)
Cement Concrete Lid (AS 3996 Class A) - Blank759792121
Cement Concrete Lid (AS 3996 Class A) - Communications759832121
Cement Concrete Lid (AS 3996 Class A) - Electricity759902121
Steel Lid (AS 3996 Class B)704201111
Steel PowerLok® lid (AS 3996 Class B)704301414
Steel Urbanfil® recessed cover (AS 3996 Class B)²804501116
Steel Pavermate® recessed cover (AS 3996 Class B)²804511117
Ductile Iron Rhinocast® recessed cover (AS 3996 Class B)³850372849
Ductile Iron Rhinocast® solid top cover (AS 3996 Class B)³852362847

Notes:

  1. Lid and access cover weights are provided as lifting weight (individual cover parts) and total weight. Recessed cover weights do not included pavement infill; for approx. lifting weight - Urbanfil®/Pavermate® covers - multiply weight by 7; Rhinocast® covers multiply weight by 1.5.
  2. Optional brass edging (Specify 'BE' after part number).
  3. Optional locking, brass or stainless steel edging in 12mm or 40mm heights (Specify 'BE' or 'SS' and height after part number).
Internal Working Area(mm)
A567
B262
C448
X605
Y300
Z745
Overall Dimensions (mm)
L715
W410
D800

Notes:

  1. Using risers will increase pit depth (Z & D) by depth of riser.
  2. Access covers will increase depth of pit by height of concrete collar - allowance should be made for concrete collar during pit installation.
