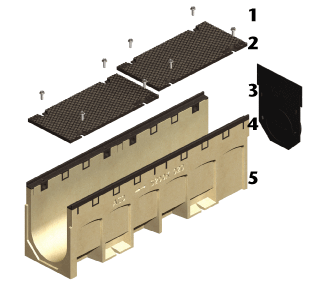

- M10 high tensile steel bolts with friction grip washers.
- Ductile iron lid (AS 3996 Class F). IP4X (AS 60529) protection against ingress of foreign objects.
- Integrally cast-in ductile iron edge rail.
- Plastic end cap.
- 1 metre long polymer concrete modular ducting channel.
| Description | Part No. | Wt (kg) Cover¹ | Wt (kg) Total |
|---|
| CS2000 Ducting channel with ductile iron lid (AS 3996 Class F) | 76537 | 15 | 82 |
| CS2020 Ducting channel with ductile iron lid (AS 3996 Class F) | 76552 | 15 | 91 |
| CS200 End cap | 95101 | 0.3 | 0.3 |
Notes:
- Lid weights are provided as lifting weight (individual lids only).
Green area indicates internal working area.
| Internal Working Area | (mm) |
|---|
| X | 1000 |
| Y | 200 |
| Z | 220/320 |
| Overall Dimensions | (mm) |
|---|
| L | 1000 |
| W | 260 |
| D | 290/390 |
CS Ducting System Data Sheet
Installation Guide
