Steel PowerLok® Lid (AS 3996 Class B)

  • AS/NZS 4586 Slip Resistance Rating R10
  • IP2XD (AS 60529) protection against ingress of foreign objects when hatch is closed.

Steel Lid (AS 3996 Class B)

  • AS/NZS 4586 Slip Resistance Rating R10
  • IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.

Polymer Concrete Lid (AS 3996 Class A)

  • AS/NZS 4586 Slip Resistance Rating R9.
  • IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.

  • Increase pit depth, riser rebate is identical to pit rebate and with lid, offers the same IP protection.
  • To produce riser, cut base off another pit to appropriate length. Each riser adds 150mm depth.
  • ACO recommends no more than 1 riser.
  • Use holesaw to cut conduit hole anywhere on side wall. Maximum number of holes recommended per pit is limited by conduit quantity and size. Contact ACO for guidance.
  • Plastic pit construction offers an economic pit solution for light duty applications. Plastic also offers excellent electrical resistivity.

All access covers have IP4X (AZ 60529) protection against ingress of foreign objects. Rhinocast® access covers offer water and gas tightness to AS 3996.

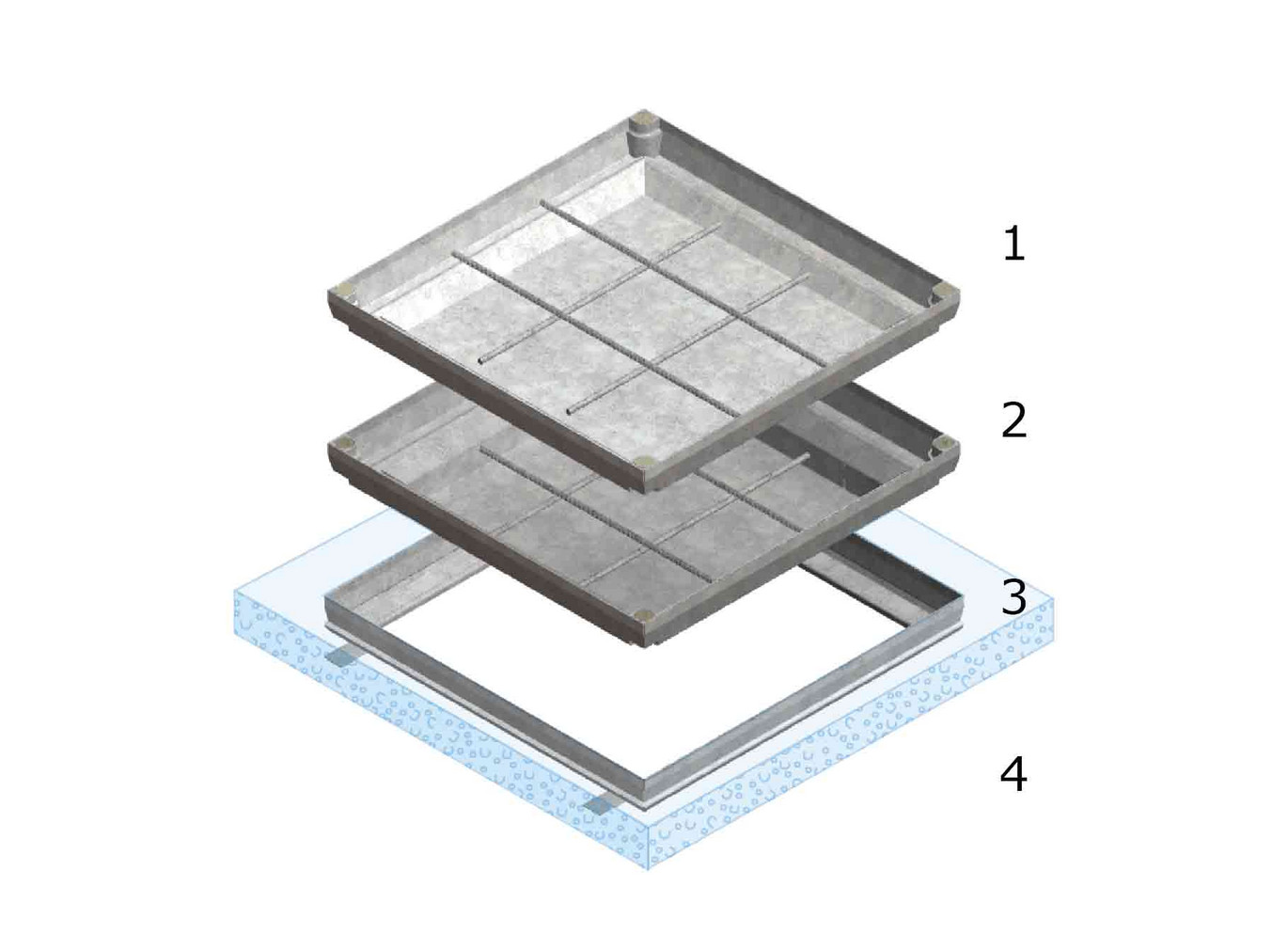

  1. Steel Urbanfil® recessed cover (AS 3996 Class B)
  2. Steel Pavermate® recessed cover (AS 3996 Class B)
  3. Steel frame - external dim. 730 x 730 x 70mm
  4. Cast-in-situ concrete collar

  1. Ductile iron Rhinocast® solid top cover (AS 3996 Class B) AS/NZS 4586 Slip Resistance Rating R10
  2. Ductile iron Rhinocast® recessed cover (AS 3996 Class B)
  3. Iron frame - external dim. 750 x 710 x 55mm
  4. Cast-in-situ concrete collar
DescriptionPart No.Weight (kg)
Type 55 Plastic Pit 762536

Lids & CoversPart No.Cover Wt (kg)¹Total Wt (kg)
Polymer Concrete Lid (AS 3996 Class A) - Blank762791919
Polymer Concrete Lid (AS 3996 Class A) - Communications762851919
Polymer Concrete Lid (AS 3996 Class A) - Electricity762971919
Steel Lid (AS 3996 Class B)755201313
Steel PowerLok® Lid (AS 3996 Class B)755301717
Steel Urbanfil® recessed cover (AS 3996 Class B)²815651522
Steel Pavermate® recessed cover (AS 3996 Class B)²819481824
Ductile Iron Rhinocast® recessed cover (AS 3996 Class B)³850453660
Ductile Iron Rhinocast® solid top cover (AS 3996 Class B)³852223563

Notes:

  1. Lid & access cover weights are provided as lifting weight (individual cover parts) and total weight. Recessed cover weights do not included pavement infill; for approx. lifting weight - Urbanfil®/Pavermate® covers - multiply weight by 7; Rhinocast® covers multiply weight by 1.5.
  2. Optional brass edging (Specify 'BE' after part number).
  3. Optional locking, brass or stainless steel edging in 12mm or 40mm heights (Specify 'BE' or 'SS' and height after part number).
Internal Working Area(mm)
A400
B400
X445
Y445
Z450
Overall Dimensions (mm)
L560
W560
D510

Notes:

  1. Using risers will increase pit depth (Z & D) by depth of riser.
  2. Access covers will increase depth of pit by height of concrete collar - allowance should be made for concrete collar during pit installation.
